PLD - Distros

Part number: Custom
.

Introducing the safest, most reliable UL® Listed Power Distro on the market, and it’s made by Whirlwind, the most trusted name in audio interface.Made in the USA using light weight aluminum panels, premium, fast response magnetic circuit breakers, and top of the line components. Built the way you’d expect when the Whirlwind name is on it. Call us or download DesignPRO 2.0, our FREE Distro design software and we'll get you a fast and friendly quote on the system that best suits your needs.Email your Design Pro file to JP for a quote: jp@whirlwindusa.com or call 800.733.9473 x135 * Note: Power Distro shown left is encased in a custom designed rack available upon request. Distros will be quoted with standard UL listed, ATA flight case unless otherwise specified.

Introducing the safest, most reliable UL® Listed Power Distro on the market, and it’s made by Whirlwind, the most trusted name in audio interface.

Made in the USA using light weight aluminum panels, premium, fast response magnetic circuit breakers, and top of the line components. Built the way you’d expect when the Whirlwind name is on it. Call us or download DesignPRO 2.0, our FREE Distro design software and we'll get you a fast and friendly quote on the system that best suits your needs.

Email your Design Pro file to JP for a quote: jp@whirlwindusa.com or call 800.733.9473 x135



Product:
PLD - Distros
Breadcrumbs:
product
description

Download a detailed high res PDF of our full line of Input Panels, Main Breaker Panels, Combo Panels, Breaker Panels, Output Panels, and Power Meter/Accesories by clicking on the thumbnails below.

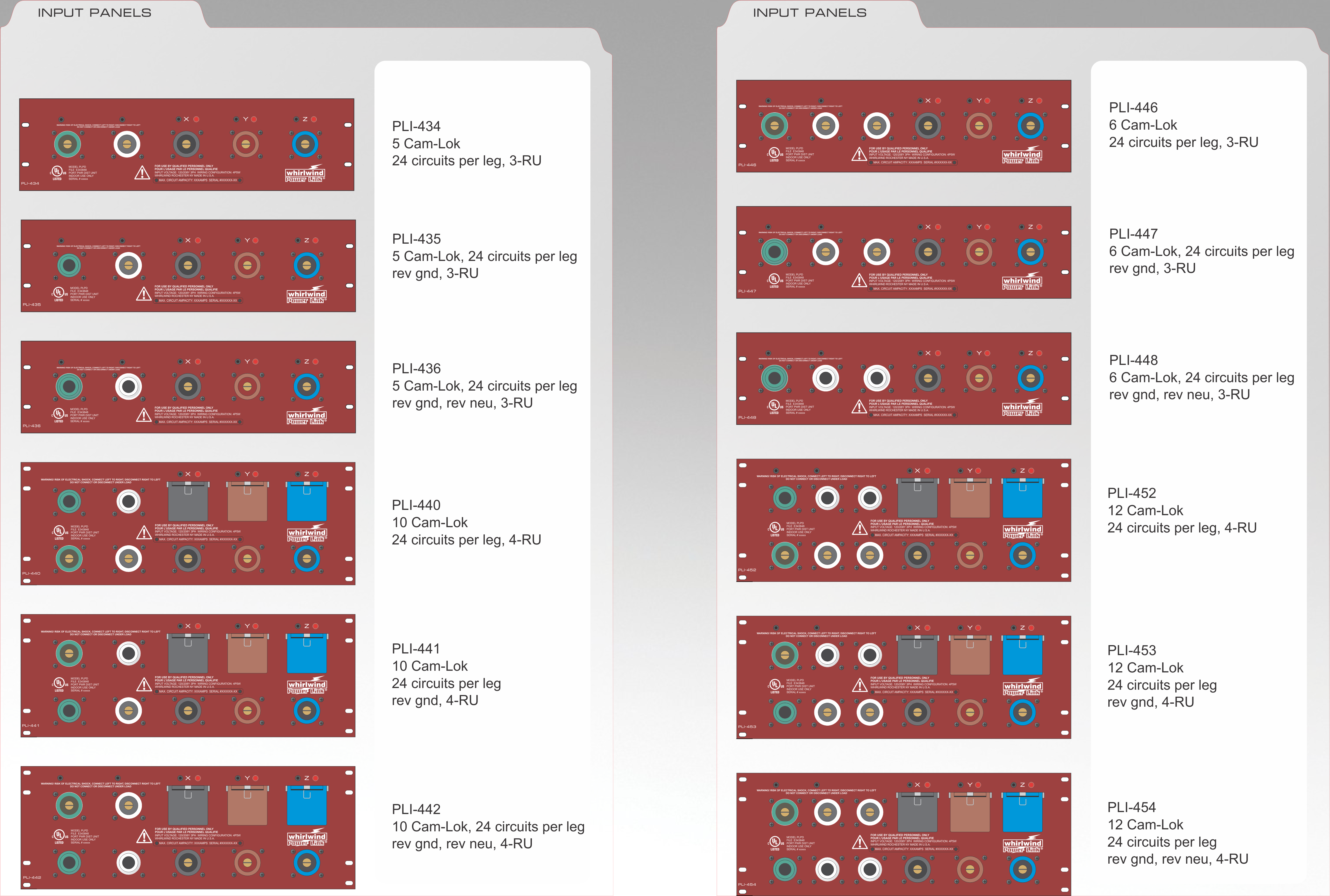

Input Panels

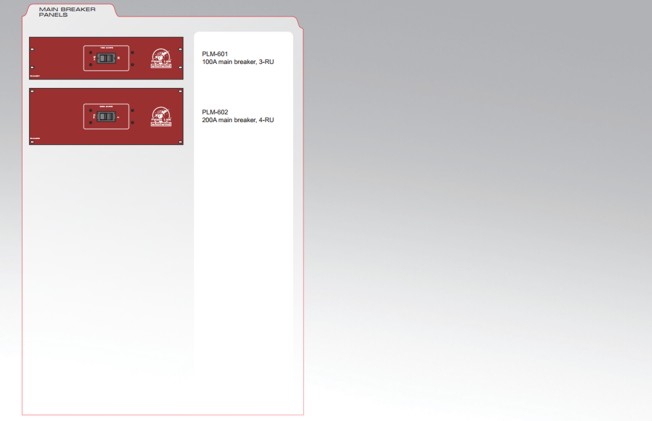

Main Breaker Panels

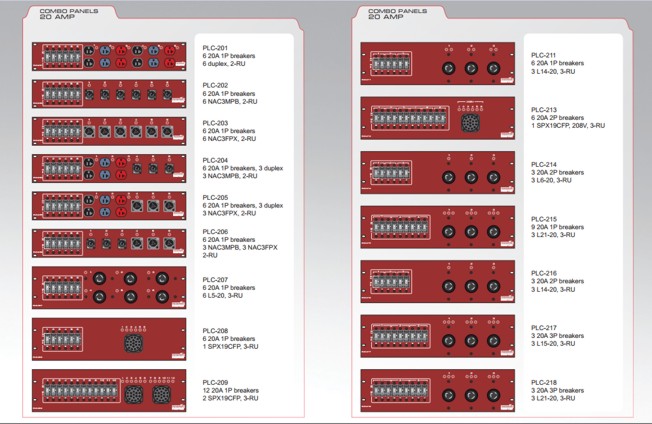

Combo Panels

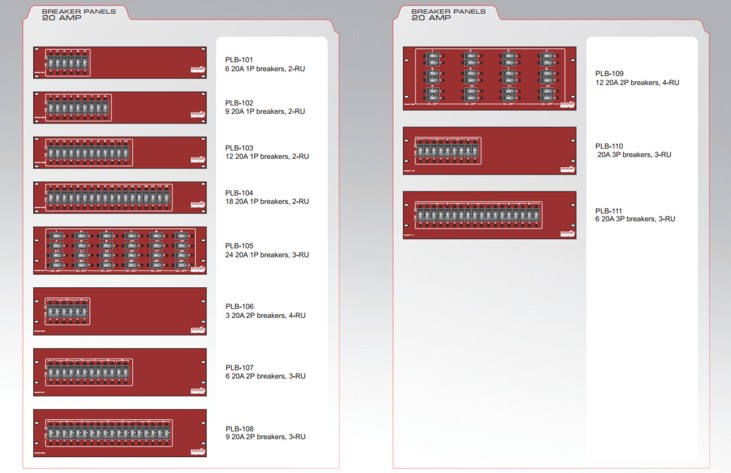

Breaker Panels

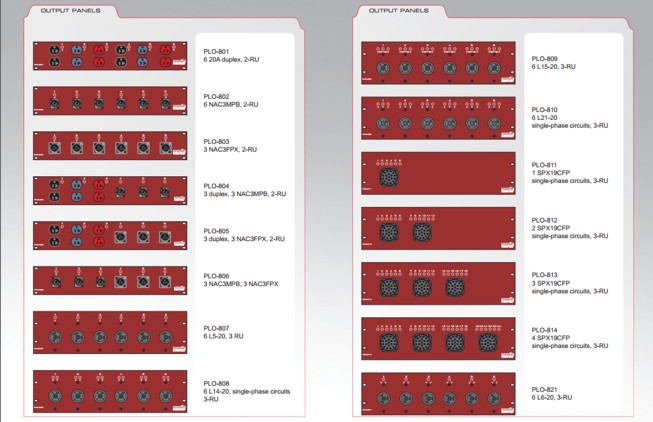

Output Panels

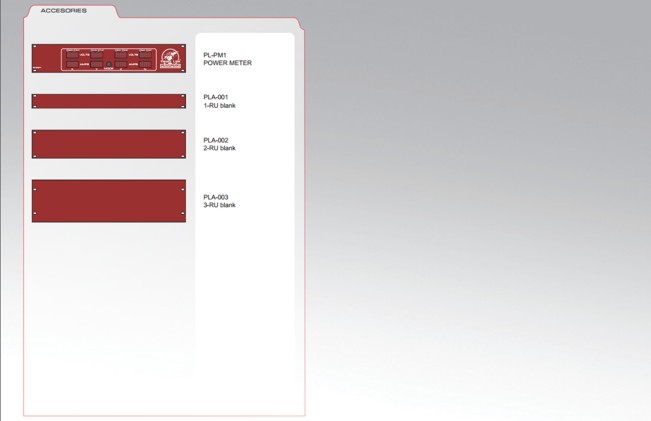

Power Meter and Accesories



POWER LINK DISTRO PART NUMBERS

ModelNumber Description Category 2
PL-PM1 meter Meter
PLA-001 1-RU blank Blank Modules
PLA-002 2-RU blank Blank Modules
PLA-003 3-RU blank Blank Modules
PLB-101 6 20A 1P breakers, 2-RU Breaker Modules
PLB-102 9 20A 1P breakers, 2-RU Breaker Modules
PLB-103 12 20A 1P breakers, 2-RU Breaker Modules
PLB-104 18 20A 1P breakers, 2-RU Breaker Modules
PLB-105 24 20A 1P breakers, 3-RU Breaker Modules
PLB-106 3 20A 2P breakers, 4-RU Breaker Modules
PLB-107 6 20A 2P breakers, 3-RU Breaker Modules
PLB-108 9 20A 2P breakers, 3-RU Breaker Modules
PLB-109 12 20A 2P breakers, 4-RU Breaker Modules
PLB-110 3 20A 3P breakers, 3-RU Breaker Modules
PLB-111 6 20A 3P breakers, 3-RU Breaker Modules
PLB-131 6 30A 1P breakers, 2-RU Breaker Modules
PLB-132 9 30A 1P breakers, 2-RU Breaker Modules
PLB-133 12 30A 1P breakers, 2-RU Breaker Modules
PLB-134 18 30A 1P breakers, 2-RU Breaker Modules
PLB-135 24 30A 1P breakers, 3-RU Breaker Modules
PLB-136 3 30A 2P breakers, 3-RU Breaker Modules
PLB-137 6 30A 2P breakers, 3-RU Breaker Modules
PLB-138 9 30A 2P breakers, 3-RU Breaker Modules
PLB-139 12 30A 2P breakers, 4-RU Breaker Modules
PLB-140 3 30A 3P breakers, 3-RU Breaker Modules
PLB-141 6 30A 3P breakers, 3-RU Breaker Modules
PLB-151 8 50A 1P breakers, 2-RU Breaker Modules
PLB-152 12 50A 1P breakers, 2-RU Breaker Modules
PLB-153 4 50A 2P breakers, 3-RU Breaker Modules
PLB-154 4 50A 3P breakers, 3-RU Breaker Modules
PLC-201 6 20A 1P breakers, 6 duplex, 2-RU Combo Modules
PLC-202 6 20A 1P breakers, 6 NAC3MPB, 2-RU Combo Modules
PLC-203 6 20A 1P breakers, 6 NAC3FPX, 2-RU Combo Modules
PLC-204 6 20A 1P breakers, 3 duplex, 3 NAC3MPB, 2-RU Combo Modules
PLC-205 6 20A 1P breakers, 3 duplex, 3 NAC3FPX, 2-RU Combo Modules
PLC-206 6 20A 1P breakers, 3 NAC3MPB, 3 NAC3FPX, 2-RU Combo Modules
PLC-207 6 20A 1P breakers, 6 L5-20, 3-RU Combo Modules
PLC-208 6 20A 1P breakers, 1 SPX19CFP, 3-RU Combo Modules
PLC-209 12 20A 1P breakers, 2 SPX19CFP, 3-RU Combo Modules
PLC-211 6 20A 1P breakers, 3 L14-20, 3-RU Combo Modules
PLC-213 6 20A 2P breakers, 1 SPX19CFP, 208V, 3-RU Combo Modules
PLC-214 3 20A 2P breakers, 3 L6-20, 3-RU Combo Modules
PLC-215 9 20A 1P breakers, 3 L21-20, 3-RU Combo Modules
PLC-216 3 20A 2P breakers, 3 L14-20, 3-RU Combo Modules
PLC-217 3 20A 3P breakers, 3 L15-20, 3-RU Combo Modules
PLC-218 3 20A 3P breakers, 3 L21-20, 3-RU Combo Modules
PLC-231 6 30A 1P breakers, 3 L5-30, 3-RU Combo Modules
PLC-232 6 30A 1P breakers, 3 L14-30, 3-RU Combo Modules
PLC-234 9 30A 1P breakers, 3 L21-30, 3-RU Combo Modules
PLC-235 3 30A 2P breakers, 3 L6-30, 3-RU Combo Modules
PLC-236 3 30A 2P breakers, 3 L14-30, 3-RU Combo Modules
PLC-237 3 30A 3P breakers, 3 L15-30, 3-RU Combo Modules
PLC-238 3 30A 3P breakers, 3 L21-30, 3-RU Combo Modules
PLC-251 6 50A 1P breakers, 3 CS6369, 3-RU Combo Modules
PLC-252 3 50A 2P breakers, 3 CS6369, 3-RU Combo Modules
PLC-253 3 50A 3P breakers, 3 CS8369, 208V, 3-RU Combo Modules
PLD-ATA08 ATA flight case, 8-RU ATA Flight Case
PLD-ATA12 ATA flight case, 12-RU ATA Flight Case
PLD-ATA16 ATA flight case, 16-RU ATA Flight Case
PLD-ATA20 ATA flight case, 20-RU ATA Flight Case
PLI-401 5 Cam-Lok, 12 circuits per leg, PM1-ready, 3-RU Input Modules
PLI-402 5 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, 3-RU Input Modules
PLI-403 5 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, rev neu, 3-RU Input Modules
PLI-404 5 Cam-Lok, 12 circuits per leg, 3-RU Input Modules
PLI-405 5 Cam-Lok, 12 circuits per leg, rev gnd, 3-RU Input Modules
PLI-406 5 Cam-Lok, 12 circuits per leg, rev gnd, rev neu, 3-RU Input Modules

PLI-407 10 Cam-Lok, 12 circuits per leg, PM1-ready, 4-RU Input Modules
PLI-408 10 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, 4-RU Input Modules
PLI-409 10 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, rev neu, 4-RU Input Modules
PLI-410 10 Cam-Lok, 12 circuits per leg, 4-RU Input Modules
PLI-411 10 Cam-Lok, 12 circuits per leg, rev gnd, 4-RU Input Modules
PLI-412 10 Cam-Lok, 12 circuits per leg, rev gnd, rev neu, 4-RU Input Modules
PLI-413 6 Cam-Lok, 12 circuits per leg, PM1-ready, 3-RU Input Modules
PLI-414 6 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, 3-RU Input Modules
PLI-415 6 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, rev neu, 3-RU Input Modules
PLI-416 6 Cam-Lok, 12 circuits per leg, 3-RU Input Modules
PLI-417 6 Cam-Lok, 12 circuits per leg, rev gnd, 3-RU Input Modules
PLI-418 6 Cam-Lok, 12 circuits per leg, rev gnd, rev neu, 3-RU Input Modules
PLI-419 12 Cam-Lok, 12 circuits per leg, PM1-ready, 4-RU Input Modules
PLI-420 12 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, 4-RU Input Modules
PLI-421 12 Cam-Lok, 12 circuits per leg, PM1-ready, rev gnd, rev neu, 4-RU Input Modules
PLI-422 12 Cam-Lok, 12 circuits per leg, 4-RU Input Modules
PLI-423 12 Cam-Lok, 12 circuits per leg, rev gnd, 4-RU Input Modules
PLI-424 12 Cam-Lok, 12 circuits per leg, rev gnd, rev neu, 4-RU Input Modules
PLI-431 5 Cam-Lok, 24 circuits per leg, PM1-ready, 3-RU Input Modules
PLI-432 5 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, 3-RU Input Modules
PLI-433 5 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, rev neu, 3-RU Input Modules
PLI-434 5 Cam-Lok, 24 circuits per leg, 3-RU Input Modules
PLI-435 5 Cam-Lok, 24 circuits per leg, rev gnd, 3-RU Input Modules
PLI-436 5 Cam-Lok, 24 circuits per leg, rev gnd, rev neu, 3-RU Input Modules
PLI-437 10 Cam-Lok, 24 circuits per leg, PM1-ready, 4-RU Input Modules
PLI-438 10 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, 4-RU Input Modules
PLI-439 10 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, rev neu, 4-RU Input Modules
PLI-440 10 Cam-Lok, 24 circuits per leg, 4-RU Input Modules
PLI-441 10 Cam-Lok, 24 circuits per leg, rev gnd, 4-RU Input Modules
PLI-442 10 Cam-Lok, 24 circuits per leg, rev gnd, rev neu, 4-RU Input Modules
PLI-443 6 Cam-Lok, 24 circuits per leg, PM1-ready, 3-RU Input Modules
PLI-444 6 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, 3-RU Input Modules
PLI-445 6 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, rev neu, 3-RU Input Modules
PLI-446 6 Cam-Lok, 24 circuits per leg, 3-RU Input Modules
PLI-447 6 Cam-Lok, 24 circuits per leg, rev gnd, 3-RU Input Modules
PLI-448 6 Cam-Lok, 24 circuits per leg, rev gnd, rev neu, 3-RU Input Modules
PLI-449 12 Cam-Lok, 24 circuits per leg, PM1-ready, 4-RU Input Modules
PLI-450 12 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, 4-RU Input Modules
PLI-451 12 Cam-Lok, 24 circuits per leg, PM1-ready, rev gnd, rev neu, 4-RU Input Modules
PLI-452 12 Cam-Lok, 24 circuits per leg, 4-RU Input Modules
PLI-453 12 Cam-Lok, 24 circuits per leg, rev gnd, 4-RU Input Modules
PLI-454 12 Cam-Lok, 24 circuits per leg, rev gnd, rev neu, 4-RU Input Modules
PLM-601 100A main breaker, 3-RU Main Breaker Modules
PLM-602 200A main breaker, 4-RU Main Breaker Modules
PLO-801 6 20A duplex, 2-RU Output Modules
PLO-802 6 NAC3MPB, 2-RU Output Modules
PLO-803 3 NAC3FPX, 2-RU Output Modules
PLO-804 3 duplex, 3 NAC3MPB, 2-RU Output Modules
PLO-805 3 duplex, 3 NAC3FPX, 2-RU Output Modules
PLO-806 3 NAC3MPB, 3 NAC3FPX Output Modules
PLO-807 6 L5-20, 3 RU Output Modules
PLO-808 6 L14-20, single-phase circuits, 3-RU Output Modules
PLO-809 6 L15-20, 3-RU Output Modules
PLO-810 6 L21-20, single-phase circuits, 3-RU Output Modules
PLO-811 1 SPX19CFP, single-phase circuits, 3-RU Output Modules
PLO-812 2 SPX19CFP, single-phase circuits, 3-RU Output Modules
PLO-813 3 SPX19CFP, single-phase circuits, 3-RU Output Modules
PLO-814 4 SPX19CFP, single-phase circuits, 3-RU Output Modules
PLO-821 6 L6-20, 3-RU Output Modules
PLO-822 6 L14-20, single-phase circuits, 3-RU Output Modules
PLO-823 6 L14-20, 3-RU Output Modules
PLO-824 1 SPX19CFP, 208V, 3-RU Output Modules
PLO-825 2 SPX19CFP, 208V, 3-RU Output Modules
PLO-826 3 SPX19CFP, 208V, 3-RU Output Modules
PLO-827 4 SPX19CFP, 208V, 3-RU Output Modules
PLO-828 6 L21-20, 3-RU Output Modules
PLO-831 6 L5-20, 3-RU Output Modules
PLO-832 6 L14-30, single-phase circuits, 3-RU Output Modules
PLO-833 6 L15-30, 3-RU Output Modules
PLO-834 6 L21-30, single-phase circuits, 3-RU Output Modules
PLO-835 6 L6-30, 3-RU Output Modules
PLO-836 6 L14-30, 3-RU Output Modules
PLO-837 6 L15-30, 3-RU Output Modules
PLO-838 6 L21-30, 3-RU Output Modules
PLO-851 4 CS6369, single-phase circuits, 4-RU Output Modules
PLO-852 4 CS6369, 4-RU Output Modules
PLO-853 4 CS8369, 4-RU Output Modules
PLR-RE06 rack enclosure, 6-RU Rack Enclosures
PLR-RE08 rack enclosure, 8-RU Rack Enclosures
PLR-RE12 rack enclosure, 12-RU Rack Enclosures
PLR-RE16 rack enclosure, 16-RU Rack Enclosures
