Whirlwind Multipair Cable

Part number: Custom
See Chart

Whirlwind Multipair Cable: Heavy duty, flexible, NEC CM rated multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire. Standard jacket is blue PVC (except W58PRFLX which is black PVC).Also available in black (except W48PR = blue only)

Whirlwind Multipair Cable: Heavy duty, flexible, NEC CM rated multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire. Standard jacket is blue PVC (except W58PRFLX which is black PVC).

Product:
Whirlwind Multipair Cable
Breadcrumbs:

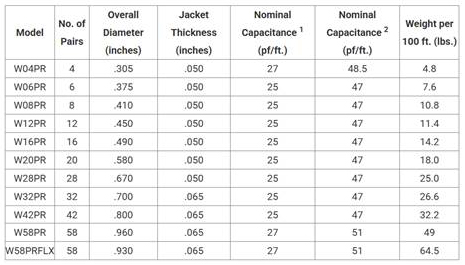

Model No. of Pairs Overall Diameter (inches) Jacket Thickness (inches) Nominal Capacitance 1 (pf/ft.) Nominal Capacitance 2 (pf/ft.) Weight per 100 ft. (lbs.)
W04PR 4 .305 .050 27 48.5 4.8
W06PR 6 .375 .050 25 47 7.6
W09PR 9 .410 .050 25 47 10.8
W12PR 12 .450 .050 25 47 11.4
W16PR 16 .490 .050 25 47 14.2
W20PR 20 .580 .050 25 47 18.0
W28PR 28 .670 .050 25 47 25.0
W32PR 32 .700 .065 25 47 26.6
W42PR 42 .800 .065 25 47 32.2
W48PR 48 .807 .065 .27 51 44.1
W58PR 58 .960 .065 27 51 49
W58PRFLX 58 .930 .065 27 51 64.5

1  Conductor to conductor
2  One conductor to shield with other conductor tied to shield
